SPECIFICATIONS

Air Velocity: 20m/s

Air Volume: 4300m³/h/ 2529CFM

Application: For Freezer Room, Cold Room, Cold Storage For Super-market

Color: White or Natural

Material: Metal Casing

Motor Material: Copper

Mounting Height: 2.5-3 m

Mounting Type: Wall/ Window Mount

Power: 750W

Product Name: Cold Room Air Curtain/ Freezer Air Curtain

Voltage: 220 - 240V/ 380V

brand name: NANYOO

compressor brand: NANYOO

core components: Motor

dimension(l*w*h): 2406*406*424mm

fan motors type: AC

key selling points: High Safety Level

machinery test report: Not Available

place of origin: China

type: Cabinet Air Conditioner

video outgoing-inspection: Not Available

warranty: 1 Year

weight (kg): 44

Product Description

Centrifugal Fan Commercial Over Door Storage Cold Room Air Curtain Machine

Cold Room Door Air Curtain - Metal Casing With High Air Volume

Cold Room Air Curtain Machine - Feature

* Higher air pressure.

* Blower driving by external rotator motor, running.

* Cylinder type air outlet, stable and uniform air supply Whole machine spraying antirust processing.

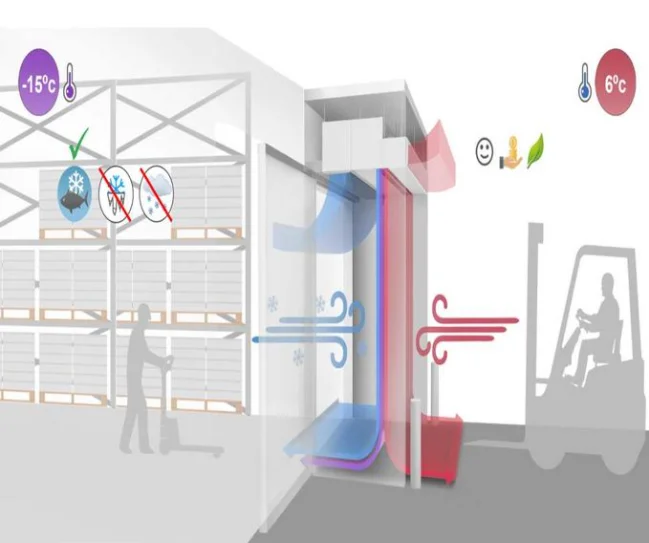

It can maintain the high speed air flow generated by the air curtain of the cold storage room, and divide the

indoor and outdoor into two independent temperature areas to create a comfortable indoor environment,

which can completely maintain the effect of purifying the air in the cold storage,
while saving energy and electricity.
And make the air circulate in the warehouse,
effectively isolate microorganisms such as dust, smoke, odor, insects and microbes.

The function of preventing the outflow of internal cooling air and saving electricity,
and keeping the cooling effect in the cold storage well.

Cold Room Air Curtain Machine - SPECIFICATION

Model	Voltage (V)	Diameter of impeller (mm)	Input power  (W)	Air Volume (CFM)	Noise (dB)	Unit Size (mm)	Mounting Height (m)
FM-2515LKM	220/240/380V	250	550	3200	72	1906*406*424	2.5-3
FM-2518LKM	220/240/380V	250	750	3800	74	2206*406*424	2.5-3
FM-2520LKM	220/240/380V	250	750	4300	75	2406*406*424	2.5-3

Our Advantages

Benefits of a cold storage air curtains

1. Energy saving 90%.
2. No logistical waiting times at busy passageways.
3. No moving parts that require frequent maintenance.
4. No risk of damage or collision.
5. Due to dangerous situations,
    No more visits by expensive service mechanics.

Application

* Cold room

* Freezer room
* Logistics center
* Fresh food supermarket

Specially using in cold storage.
Strong air volume and high pressure.
Special air duct design to make sure the air curtain is strong enough and no gap.

Packing&Shipping

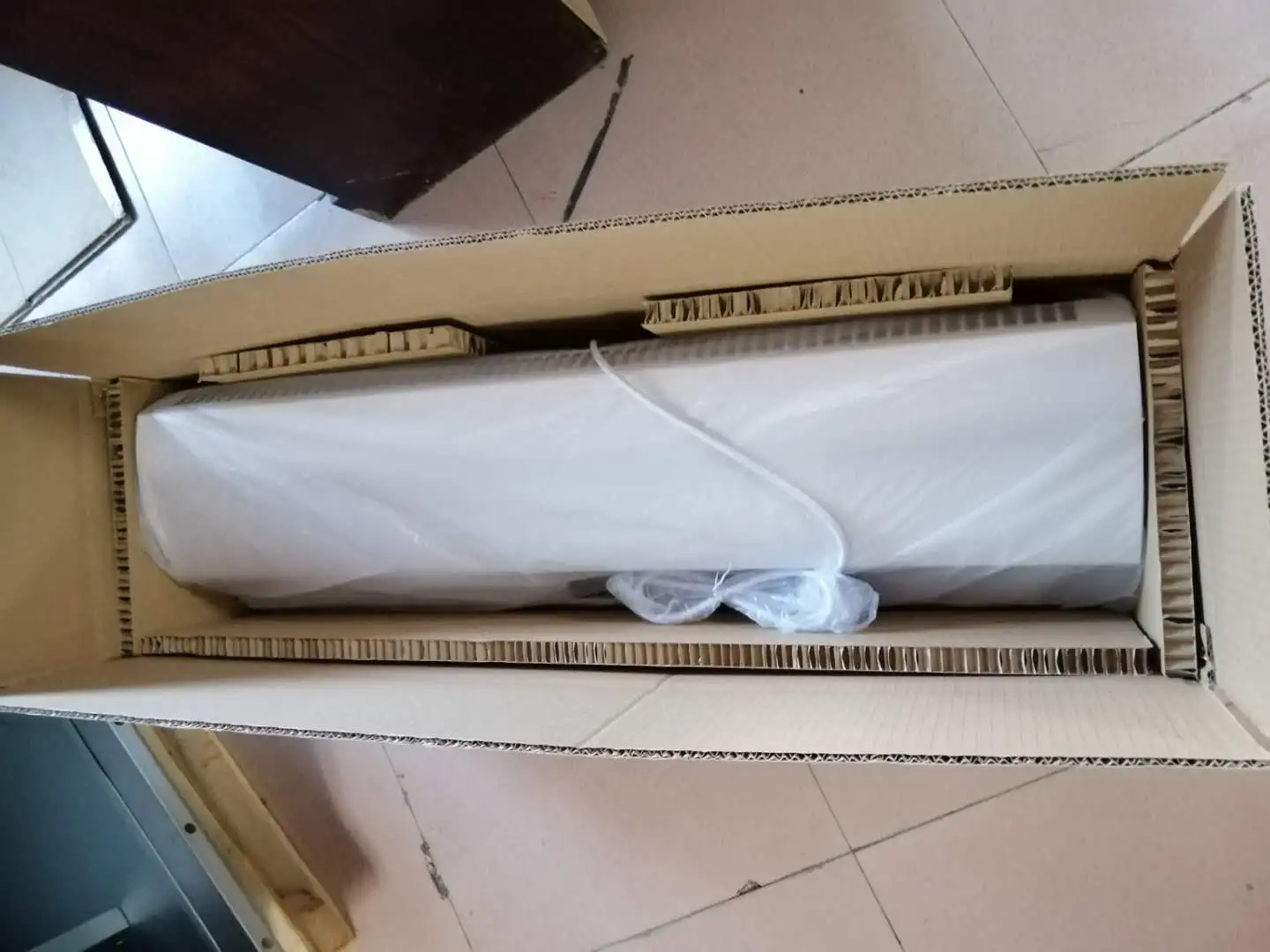

Packing: Carton packaging with foam & PE poly bag protection.

Company Introduction

Foshan Nanhai Nanyang Electric Appliance& Motor Co.,Ltd (NANYOO) was established in 1987, starting to make motor, from 1997, engaged in air curtains industry, in year, entered inline fan business.

Nanyoo is a factory that specializing in the production , development sale and service of fresh air system, especially air curtain widely used in public places of door head postion . Inline Fan , Industrial Fan , Ceiling fan , Recessed fresh air system and ventilator is widely used in families and public places .
Nanyoo has gained ISO9001 international quality management system and ISO14001 Environmental management system certification. The products are qualified with CCC, CE, CB, ROHS and SAA certifications.
